10/100/1000M Copper SFP Transceiver 1.25 G SFP To RJ45 Connect With Cat5 Cat6 Copper Cable LAN Network

Name: 10/100/1000M Copper SFP Transceiver 1.25 G SFP To RJ45 Connect With Cat5 Cat6 Copper Cable LAN Network
Brand: YINGDA TECHNOLOGY LIMITED
SKU: SFP-1G-T
Price: 11.60 USD
Availability: InStock

Ονομασία μάρκας:	YINGDA
Αριθμός μοντέλου:	SFP-1G-T
Τροποποιημένο:	10 ΤΕΜ
τιμή:	3.6usd-19.9usd
Χρόνος παράδοσης:	5-7 εργάσιμες ημέρες
Όροι πληρωμής:	D/A,D/P,T/T

Λεπτομέρειες

Περιγραφή του προϊόντος

Λεπτομέρειες

Τόπος καταγωγής:

Κίνα

Πιστοποίηση:

ISO,CE

Τύπος:

Πομποδέκτες οπτικών ινών

Συνδετήρας:

RJ45

Σχηματισμός:

SFP+

Δίκτυο:

Wired Lan

Χρήση:

Διακόπτης/Κάρτα Δικτύου/Δρομολογητής/Διακομιστής

Επισημαίνω:

1000M SFP Copper Cable

SFP to RJ45 Copper Cable

Cat5 Cat6 Copper Cable

Περιγραφή του προϊόντος

10/100/1000M Copper SFP Transceiver 1.25 G SFP To RJ45 Connect With Cat5 Cat6 Copper Cable LAN Network

SFP-1G-T Copper Small Form Pluggable (SFP) transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100meters reach over unshielded twisted-pair category 5 cable. The module supports 10/100/1000Mbps auto negotiation data-links when the SFP interface support SGMII also. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of 0xA0- 0xA2 via the IIC BUS protocol.

Features:

Up to 1.0Gb/s bi-directional data rate
Hot-pluggable SFP
Fully metallic case for low EMI
Low power consumption (0.5W typical)
Compact RJ-45 connector assembly
10/100/1000Mbps compliant in host systems with SGMII Interface
100Mbps compliant in host systems with 100Base-FX interface
Compatible with RoHS and lead-free
Case operating temperature:

Commercial	0°C to +70°C
Industrial	-40°C to +85°C

Mechanical Specifications(Unit:mm)

Pin Description

Descriptions
Pin	Signal Name	Description	Plug Seq.	Notes
1	VeeT	Transmitter Ground	1
2	TX FAULT	Transmitter Fault Indication	3	Note1
3	TX DISABLE	Transmitter Disable	3	Note2
4	MOD_DEF(2)	SDA Serial Data Signal	3	Note3
5	MOD_DEF(1)	SCL Serial Clock Signal	3	Note3
6	MOD_DEF(0)	TTL Low	3	Note3
7	Rate Select	Not Connected	3
8	LOS	Loss of Signal	3	Note4
9	Veer	Receiver ground	1

10	Veer	Receiver ground	1
11	Veer	Receiver ground	1
12	RX-	Inv. Receiver Date Out	3	Note5
13	RX+	Receiver Date Out	3	Note5
14	VeeR	Receiver ground	1
15	VccR	Receiver Power Supply	2
16	VccT	Transmitter Power Supply	2
17	VeeT	Transmitter Ground	1
18	TX+	Transmit Date In	3	Note6
18	TX-	Inv. Transmit Date In	3	Note6
20	VeeT	Transmitter Ground	1

Detail information:

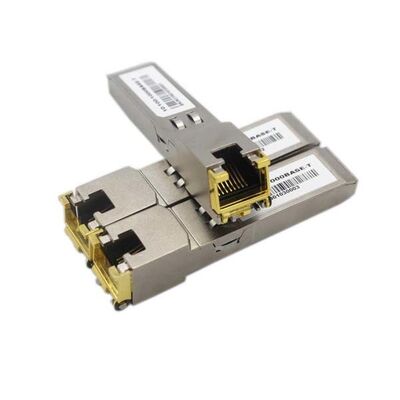

10/100/1000M Copper SFP Transceiver 1.25 G SFP To RJ45 Connect With Cat5 Cat6 Copper Cable LAN Network 1

1.25G Copper SFP Module use metal bail clasp to pulling the optical transceivers outside of the SFP Port, it can turn 90 degree and then pull out of the module horizontally and softly.

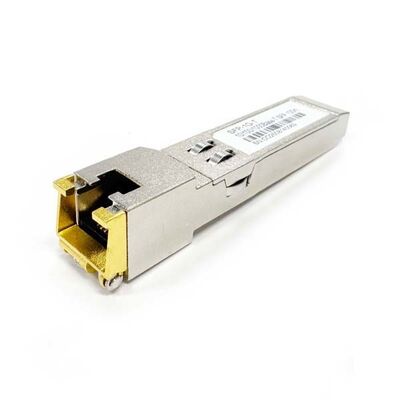

10/100/1000M Copper SFP Transceiver 1.25 G SFP To RJ45 Connect With Cat5 Cat6 Copper Cable LAN Network 2

YINGDA provides a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

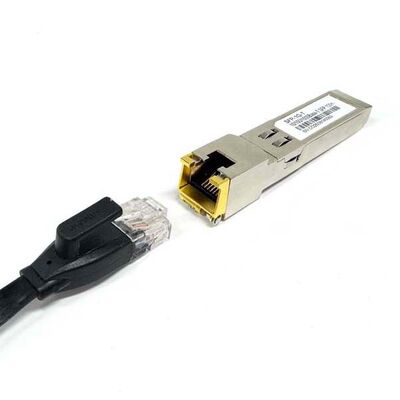

10/100/1000M Copper SFP Transceiver 1.25 G SFP To RJ45 Connect With Cat5 Cat6 Copper Cable LAN Network 3

Wide Compatibility

Compatible with various brands of equipment,such as switches/routers/servers/transceivers or other devices with SFP interfaces.

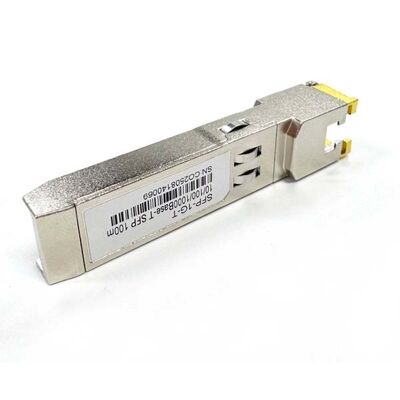

10/100/1000M Copper SFP Transceiver 1.25 G SFP To RJ45 Connect With Cat5 Cat6 Copper Cable LAN Network 4

FAQ

1. Are you factory or trading company?

Shenzhen YINGDA Photonic Co. Ltd is a specialized manufacturer of fiber optic telecon products, such as fiber optic splitter box,fiber termination box, PLC Splitter,patch cord, and SFP modules, etc.

2. Can I get a sample before mass production?

Yes, we can offer you free sample to test quality, but you should pay the shipping fee.

3. What is your delivery time?

Ready to ship for stock and 15-30 days for mass production.

4. What after-service can you offer?

One year guarantee period and we can offer technical support online 24 hours.

5. Can you accept OEM/ODM order?

Yes, please send inquiry to us so that we can have a detailed discussion.
